Electro-Galvanized 7×7 Aircraft Cable

Electro Galvanized 7×7 Aircraft Cable with a steel core, combining moderate flexibility, abrasion resistance, and corrosion protection. Perfect for control systems, suspension, and utility applications.

Available Diameters: 1.2mm – 4.0mm

Structure: 6X7-WSC (7X7 )

Core: Steel Strand

Material: High Carbon Steel

Finish: Electro-Galvanized

Available Package: Coil / Iron Spool / Wooden Spool

The 7×7 electro galvanized steel wire rope, also widely known as aircraft cable, features a construction of 7 strands with 7 wires per strand. This design provides a perfect blend of flexibility and tensile strength, making it ideal for mechanical control cables and light-duty applications.

Thanks to the electro-galvanized finish, it offers a clean and bright surface, along with basic corrosion resistance—perfect for indoor or semi-protected outdoor environments. Electro Galvanized 7×7 Aircraft Cable is a cost-effective choice for manufacturers seeking both performance and efficiency.

Balanced flexibility and stiffness—ideal for control cables and suspension systems

Ideal for crimping and end fitting installations

Bright surface, clean appearance

Popular choice in industrial and consumer-grade cable assemblies

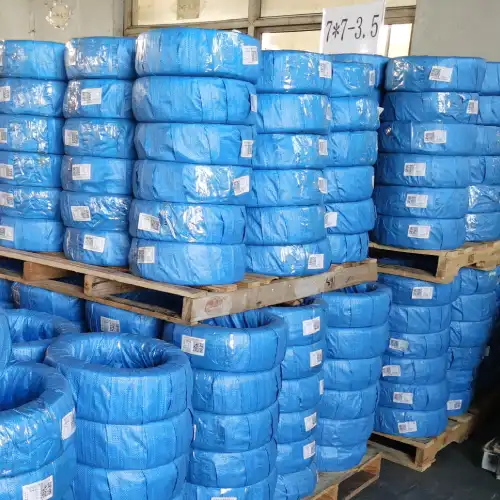

Product image of 7X7 galvanized wire rope 2

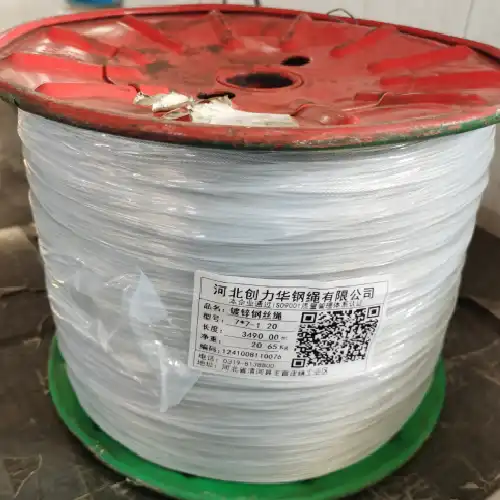

Product image of 7X7 galvanized wire rope 1

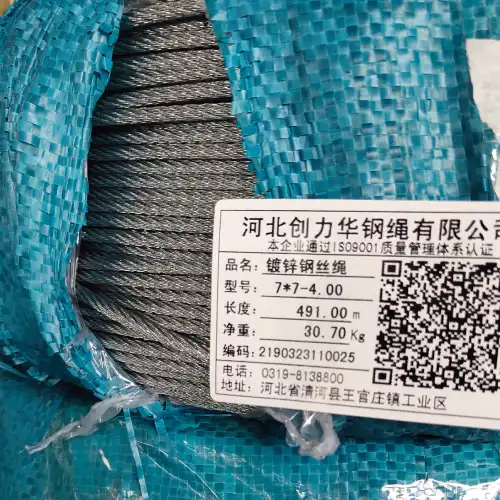

Product image of 7X7 galvanized wire rope 3

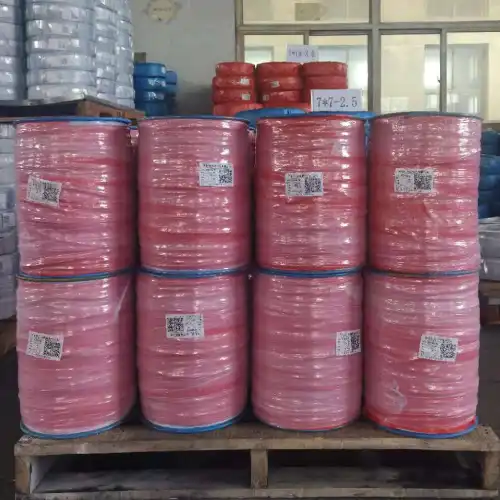

Product image of 7X7 galvanized wire rope 4

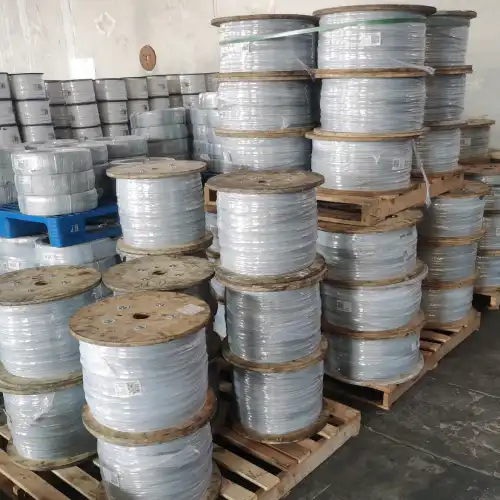

Product image of 7X7 galvanized wire rope 5

Specification

Nominal Diameter		Wire Rope Elongation		Min. Breaking Loads			Weight	Finish
(mm)	(in)	Elastic (%)	Permanent (%)	(kN)	(kg)	(lb)	(kg/100m)	Finish
1.2	3/64	0.9	0.2	1.35	135	297	0.67	electro-galvanized
1.4				1.76	176	388	0.87
1.5				1.99	199	440	0.98
1.8				2.81	281	620	1.39
2.0				3.38	338	745	1.67
2.5	3/32			5.45	545	1202	2.37
2.8				6.45	645	1422	3.34
3.0	1/8			7.28	728	1605	3.37
3.5		1.1		10.37	1037	2286	5.37
4.0	5/32	1.1		12.92	1292	2850	6.7

7×7 galvanized wire rope/aircraft cable is widely used in:

Theater staging and display rigging using

Control systems for vehicle, motorcycle like brake cables or clutch cables

Agricultural trellising and crop protection structures

Garage door supports, winch and tie-down systems

Small diameter wire rope slings

Suspension lines for light structural or decorative use
