How to Determine the Lay Direction of Wire Rope？the easiest way

Definition of lay direction in wire ropes.

In the realm of wire ropes, understanding the lay direction is paramount in ensuring the integrity and reliability of these crucial components.

Essentially, the lay direction refers to how the wires are twisted together to form the strands, which in turn are twisted together to create the rope. It can be classified as either right-hand lay(regular lay) or left-hand lay(lang lay), depending on the direction of the twist.

Why the lay direction for a wire rope is important?

Understanding and selecting the correct lay direction for wire ropes is essential for optimizing their performance, durability, and safety across a wide range of applications in industries such as construction, maritime, and engineering.

Load Bearing Capacity: The lay direction affects how the wires and strands distribute the load along the length of the rope. Choosing the appropriate lay direction ensures optimal load-bearing capacity, enhancing the rope’s strength and durability.

Fatigue Resistance: The lay direction influences the rope’s response to bending and flexing. Properly aligned wires and strands reduce stress concentrations, improving the rope’s resistance to fatigue failure over time.

Twist Stability: Wire ropes with a consistent lay direction tend to exhibit better twist stability, maintaining their shape and performance under various operating conditions. This stability is vital for applications where precise movement or positioning is required.

Compatibility with Equipment: Certain applications and machinery may require wire ropes with specific lay directions to function effectively. Using the correct lay direction ensures compatibility and reduces the risk of premature wear or damage to equipment.

Safety: Selecting the appropriate lay direction is essential for ensuring the safety of personnel and equipment. Improperly aligned wire ropes may exhibit unexpected behavior under load, leading to accidents or equipment failure.

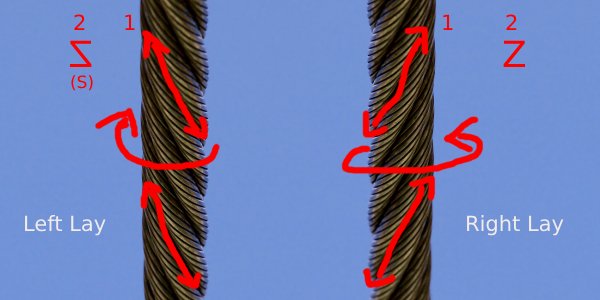

The international convention uses ‘S’ to represent left-lay steel wire rope and ‘Z’ to represent right-lay.

The Most Straightforward Method: Visual Inspection for Identifying Lay Direction

When it comes to determining the lay direction of wire ropes, a visual inspection can provide valuable insights, particularly for individuals working in industries like construction, maritime, or engineering, as well as enthusiasts seeking a deeper understanding of wire rope mechanics.

One of the most apparent visual cues for identifying lay direction is the pattern of the wire wraps around the core of the rope. There are two different interpretations of this method.

Wire Alignment: In a right-hand lay rope, the wires tend to align diagonally from the bottom left to the top right when viewed from one end. Conversely, in a left-hand lay rope, the wires align diagonally from the bottom right to the top left.

Crossing Over: Another distinguishing factor is how the wires cross over one another. In a right-hand lay rope, the wires typically cross over in a manner resembling the letter “Z,” while in a left-hand lay rope, the crossing pattern resembles the letter “S.”
